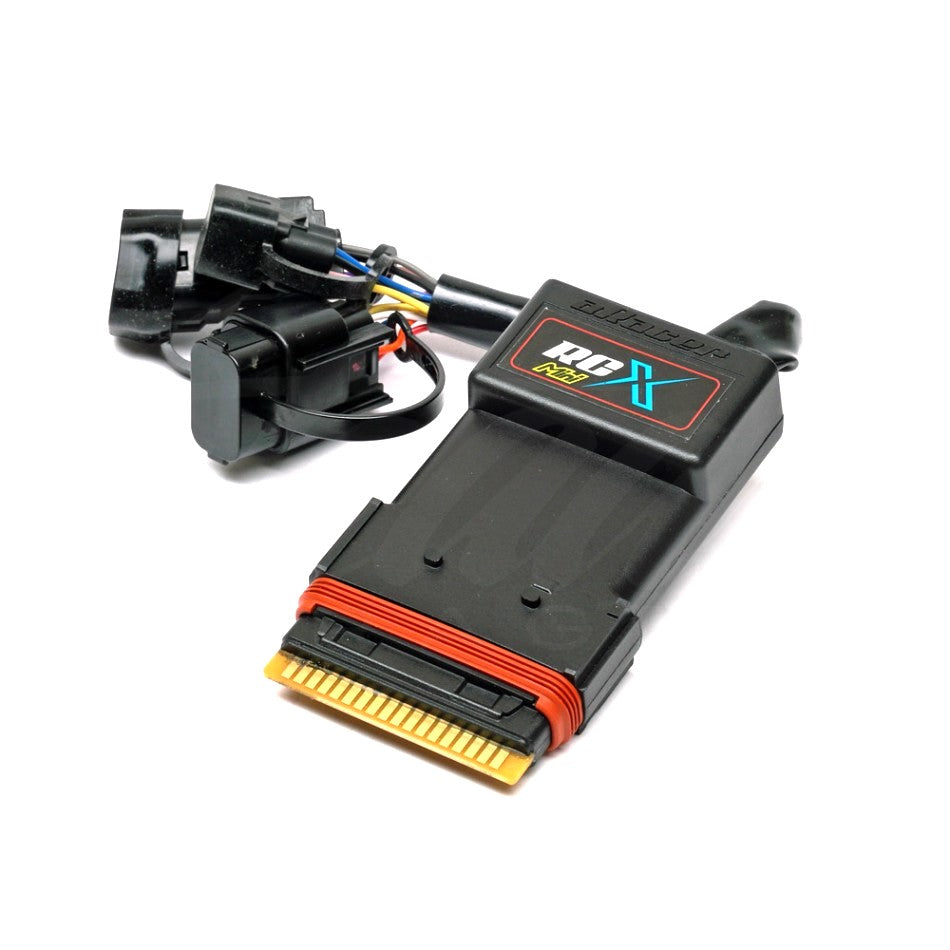

ARACER RCMINI X ENGINE MANAGEMENT ECU HONDA GROM 125CC (2022+)
ARACER RCMINI X ENGINE MANAGEMENT ECU HONDA GROM 125CC (2022+)
Regular price
$695.00 AUD
Regular price
$781.00 AUD
Sale price
$695.00 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
ARacer RCmini X is a Complete engine management system that allows you to make all adjustments via wifi to your smartphone/tablet. Pair this up with the correct fuel injector size and you could easily tune your engine to run. Tuning could be done on a dyno (highly recommended) or safely on a backroad/street using a wideband o2 gauge and sensor with the autotune function. Optional AF2 option is available and recommended to be used with the RCmini X to have the ECU Auto-Tune.

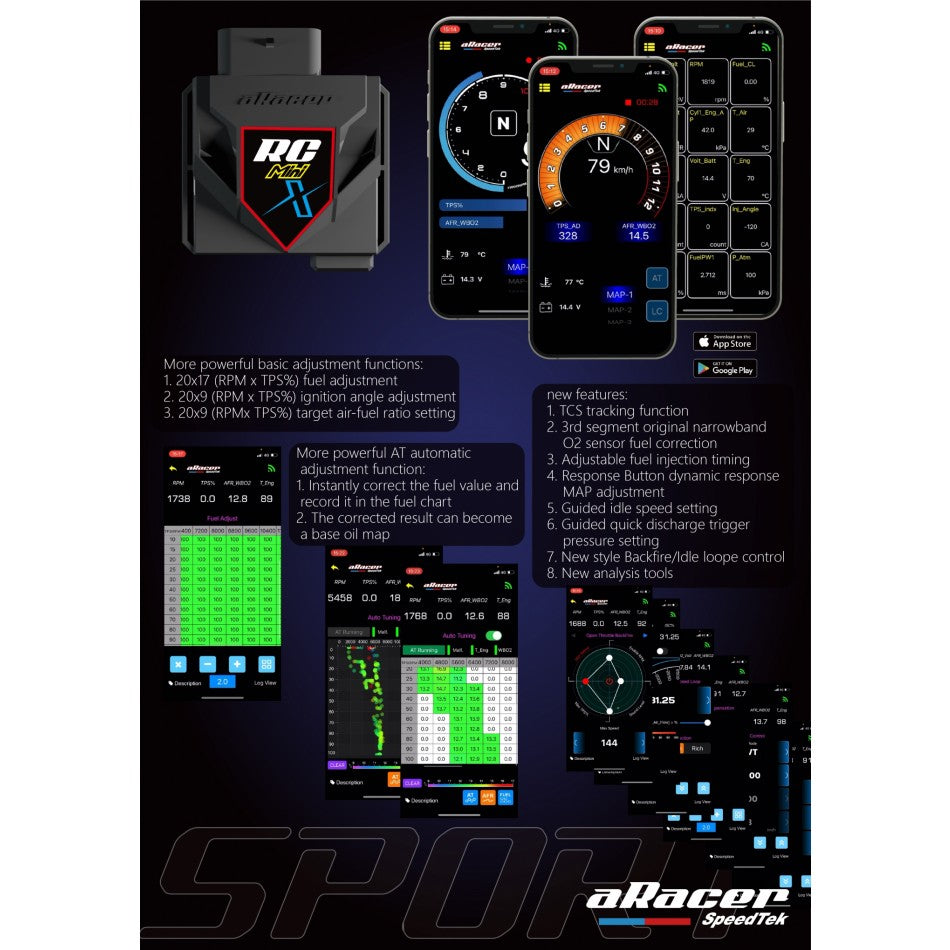

RC Mini X ECU Hardware Features:
- A quicker 4-core MCU computing speed processor (200% increase!)
- Built-in wifi connectivity with 360-degree antenna (20% connection strength)
- Redesigned external wiring which allows direct connection to AF2 module and/or quick-shifter
RC Mini X ECU Software Features:
- FREE APP DOWNLOAD! No longer required to pay $16 for the Aracer Smart App
- Improved AutoTune fuel adjustments and feedback with the use of the AF2
- Each ECU has an exclusive ID, which the users can pay by credit card online to unlock special add-on options
- WiFi connection allows for Laptop or SmartPhone connection
- QuickBurn (Flash) is shortened by 200% (less than 60 seconds)
RC Mini X Function Features:
- TCS traction function
- The original factory is not equipped with TCS, and it can be easily started in the rainy and slippery state after it is turned on
- The original factory is equipped with TCS, which can provide 3 stages adjustable
- 3rd segment original narrowband O2 sensor fuel correction
- Adjustable fuel injection timing
- Response Button power response MAP adjustment → After the upgrade, open and hide the 3 target air-fuel & ignition angle diagrams
- Guided idle speed setting
- Guided quick discharge trigger pressure setting
- New style Backfire/Idle loop control
- New analysis tools
- Brand-new 4-core MCU, the computing speed is increased by 200%
- 20x17 (RPM x TPS%) fuel adjustment
- 20x9 (RPM x TPS%) ignition angle adjustment (pay to open another 2 MAP)
- Manifold Air Pressure base for inlet air amount calculation
- Environment temp and Baro compensation available
- Increase Rev Limit. Pit Limit.
- Increase almost 10% above power after calibration (depend on engine model)
- Easy plugin (remove stock ECU and install RC1 ECU without any harness modified)
- Same connector as stock ECU
- RCmini 5 ECU meet IP67 specs
- Support Auto-Tune with aRacer AF2 wideband sensor module
- Built-in Wi-Fi and 360-degree antenna design (no additional wiring required), the connection signal strength is increased by 20%
**NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES**
